Activity wheel for head-restrained animal

The mouse runs on the top of the wheel and gets a reward according to behavioral outputs set by the experimenter. Electrophysiological and optogenetic studies may be conducted while the animal is running and getting the reward.

Activity wheel for head-restrained animal

Apparatus

The mouse is immobilized by the skull and walks on the top of the wheel. The animal may receive liquid rewards while running.

The apparatus is composed of:

  • a plated-steel platform on which a stereotaxic apparatus may be fixed
  • a low-torque activity wheel equipped with rotation sensors
  • two syringe pumps to deliver liquid in front of the mouth of the animal
  • a sound generator and loudspeaker
  • two buttons whose actions may be controlled by the experimenter in the exercise (a press on one button would lead to one drop of liquid and a press on the second would lead to the emission of a sound)
  • a TTL command. This signal may be used as a trigger by any electrophysiological or optogenetical system.

The software manages the distribution of liquid and the emission of sounds according to real-time locomotor data (instantaneous locomotor speed, acceleration, distance covered,…), and clocks.

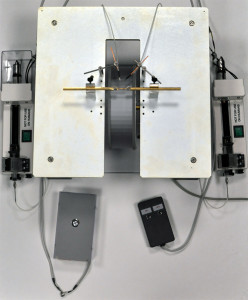

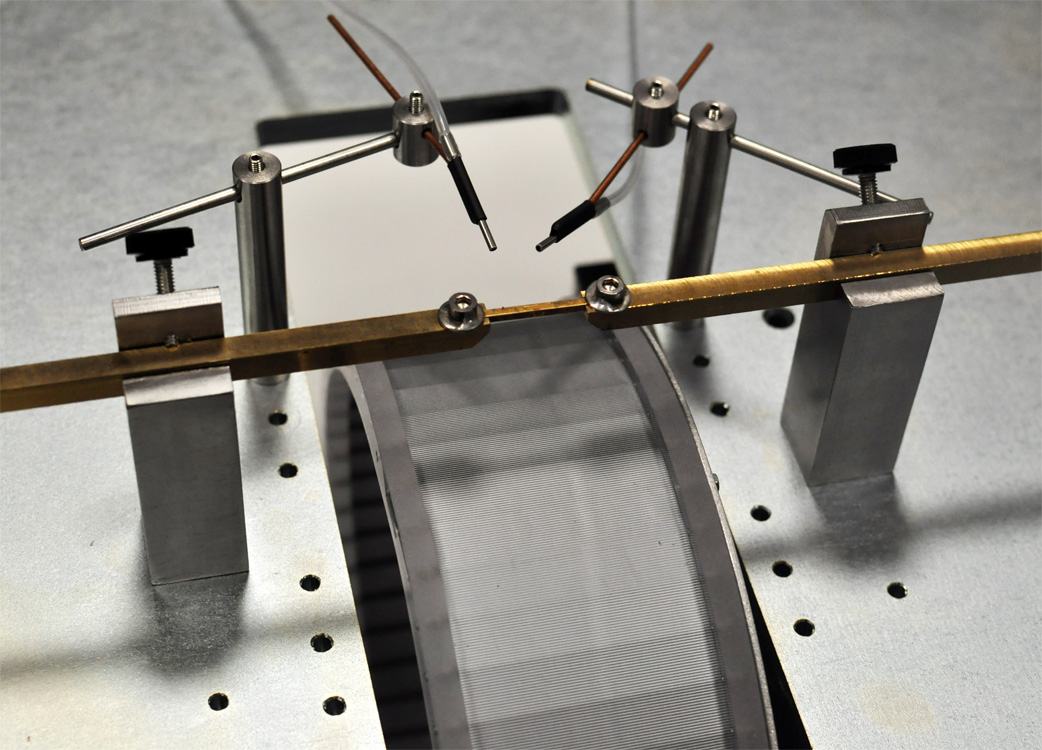

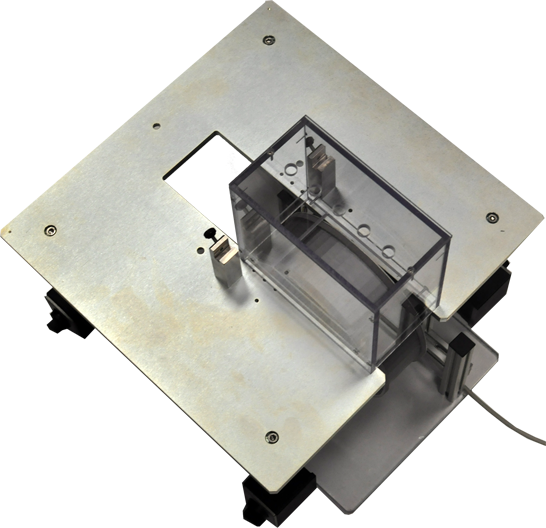

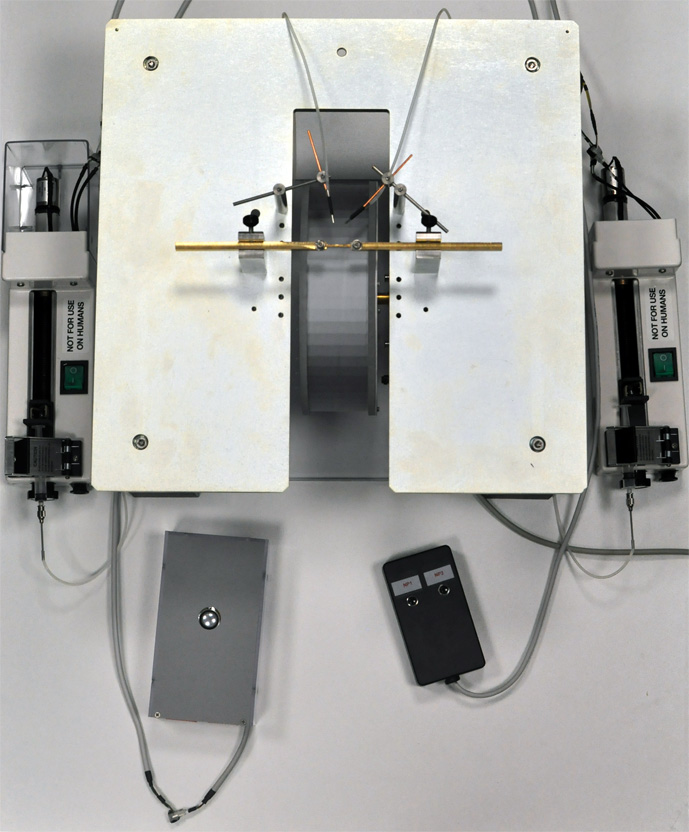

roue vue globale      roue-zoom      roue avec boite

Made to measure

This apparatus is adaptable according to your requests and your needs.

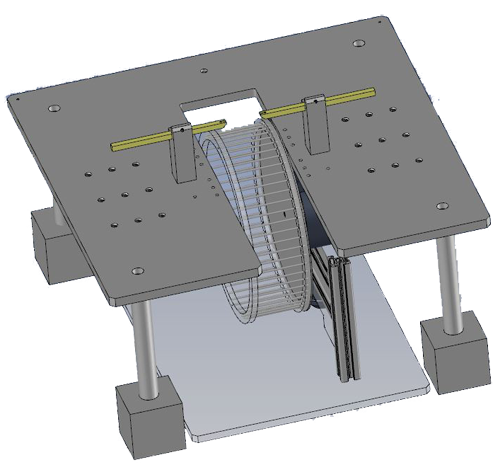

roue2

Software

The main measured data are:

  • real-time locomotor speed
  • kinetics of the locomotor activity of the mouse
  • distance covered
  • number of drops of liquid distributed

The data are classified and exported into a Microsoft Excel file.
