Actimeter

The actimeter is a must-have apparatus, which may be used in a large range of thematics, to study motor responses to treatments, spontaneous locomotor activity, circadian rythms, exploratory behavior, reactivity to novelty,...

Actimeter

Apparatus

  • our actimeter has got a light aluminum structure (covered with PVC removable plates) forming a rack of 8 boxes. It’s very easy to move, thanks to its wheels.
  • rack dimensions: height, width, depth: 1.65 m, 1 m, 0.6 m.
  • each box is equipped with infrared sensors to detect locomotor activity, an infrared plane to detect rearings, a removable cage, a sliding floor, a trough and a bottle.
  • the controllable houselights, the trough and the bottle, allow long-lasting experiments.

All the racks are connected to a common electronic interface, which provides the formatting of signals from infrared sensors and allows communication with the computer.



actirats      acti_rats



CAGES: For rats, we propose the 2150E001 model from Tecniplast. For this model, equipped with a feeding trough and bottle on the front, you may order the cage 2150Z001ZE directly from Tecniplast (minimum 500 pieces). For fewer quantities, we propose a customized adaptation of the 2150E001, see pictures below:

2150E001

Rats, Mice, Rats/Mice

In order to save both money and room, we propose an actimeter in which you may run experiments with Rats and Mice. We provide accessories for both species (cage, trough, bottle, …).

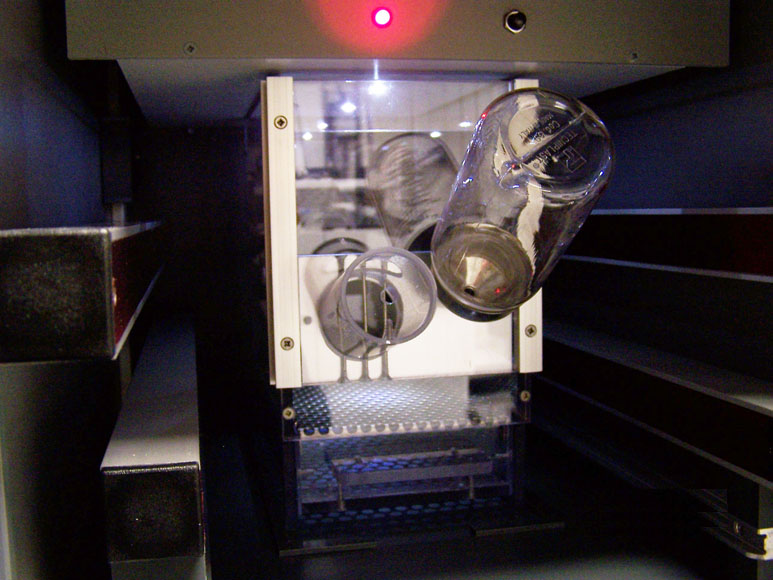

Box of an actimeter for Mice
Box of an actimeter for Mice

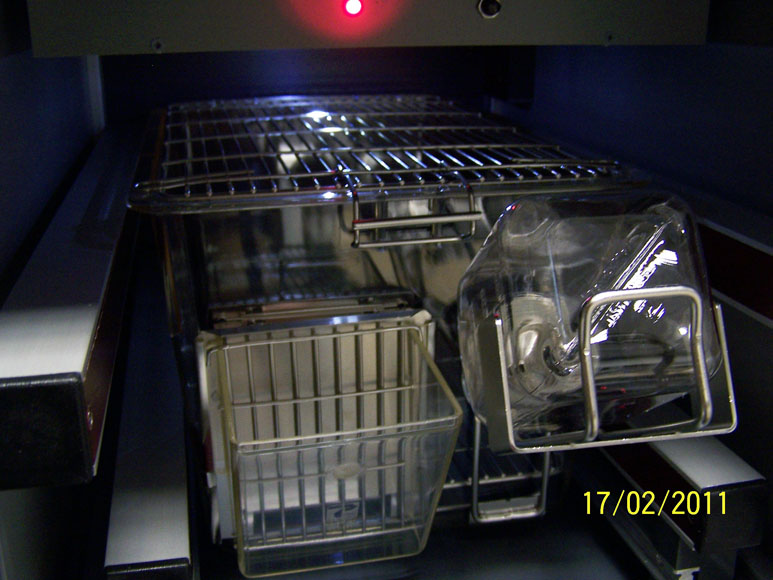

Box of an actimeter for Rats
Box of an actimeter for Rats

Software

The software (running on Windows) allows managing 6 racks of 8 cages (i.e. 48 actimeters). Each cage remains independent.

  • monitoring graphs,Display of the software that manages the experiments
  • data storage per configurable unit of time (from 1 sec to several hours),
  • recording time: from 1 minute to several days,
  • data : locomotor activity, activity in the front, acivity in the back, Rearings



A software module is dedicated to managing data files. It allows:

  • merging the files,
  • presenting the output variables and their kinetics per configurable time unit in a Microsoft Excel compatible data sheet.
    Office Excel
